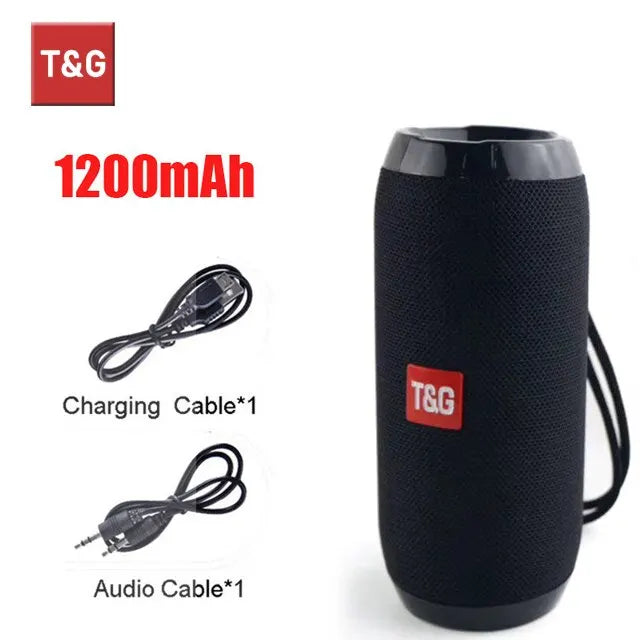

Bluetooth Portable Loudspeaker
Bluetooth Portable Loudspeaker
Couldn't load pickup availability
SPECIFICATIONS
Channels: 2 (2.0)
Brand Name: T&G
Output Power: 5W
Dimensions [mm] ( L x W x H ) : ( 68.8 x 68.8 x 160 )
Weight[g]: 400
Voice Control: No
Number of devices connectable simultaneously: 1
Speaker Type: Portable
Material: Plastic
Display Screen: No
Playback Function: Radio
Communication: Bluetooth
Waterproof: Yes
Support Memory Card: Yes
Origin: Mainland China
Certification: CE - RoHS
Total Harmonic Distortion: 0.1
Sound Mode: Stereo Sound Mode
Audio Crossover: Full-Range
Input Power(W): <25 W
Built-in Microphone: Yes
Maximum wireless range[m]: 10m-20m
Number of Loudspeaker Enclosure: 1
T&G Model: TG117
Battery: Yes
Remote Control: No
Touch Screen: no
Power Source: Battery
Power Source: USB
• Waterproof :This speaker is waterproof, making it perfect for outdoor activities like camping or picnics.
• Bluetooth 5.3 :With Bluetooth 5.3, this speaker provides a stable and fast connection to your device, ensuring smooth audio playback.
• TF Radio Support :This speaker supports TF radio, allowing you to listen to your favorite radio stations without needing to connect to a device.
• Hands-Free Calling :This speaker also has a built-in microphone, allowing you to make hands-free calls while on the go.
PRODUCT SPECIFICATIONS:
●Wireless: V5.3
Support: L2CAP/A2DP(AVCTP/AVDTP/AVRCP), to receive stereo audio signal, can control the audio transmitter and up and down
●Working distance: 10M
●SNR:≥90db
●Battery: about 1200mAh
●Built-in voltage: 3.7V
●Normal volume playing time: About 3-4H
●Power: 5W *2
●Frequency response: 120Hz- 20kHz
●Unit size:68.8*68.8*160mm
◆Unit weight: about 400g
◆Charging:5V/500mA
◆Charging time: about 3-4h
PRODUCT FEATURE:
1.International advanced wireless chip and circuit design techniques, support wireless devices.
2.With FM function, can search radio station broadcast automatically.
3.With Hi-Fi speaker, to make sure the clear and bright sound.
4.Support Micro SD card and USB card, play MP3 format audio.
5.The wireless working distance is 10 meters.
6.With AUX line in, can directly connect the outside devices, for example, tablet PC/TV/cell phones.
7.It will close automatically if disconnect Wireless for 30 mins.
8.Support TWS.
KEY AND SLOT FUNCTION:
1.DC 5v slot, (standard Micro USB V8 charging cable for power charge)
2.TF slot: It can decode and play MP3 format audio when put TF card into the slot.
3.USB slot: It can decode and play MP3 format audio when put the USB card into the slot.
4.LINE IN slot: Use the Mini 3.5 head input through outside devices.
5.When play music, Press short for last song, long press to turn down the volume.
6.When play music, press short for next song, long press to turn up the volume.
7.When play music,(USB card/TF card/Wireless/line in/FM), short press to switch model. Keep the TWS speaker under Wireless mode without pairing with mobile ,press the “M” key for 3 seconds either of the speaker until hear a hint "du du du" for TWS mode ,then can pair the mobile.
8.Press long for power on /power off. When play music,(USB card/TF card/Wireless), short press for "play/pause". In FM mode, press short to search station automatically, press again to stop searching. Under wireless mode with mobile paired, when call coming, press short to answer a call hands-free, press again to hand up, press twice to ring up a call.
NOTE: In the FM mode, put in micro charging cable to get better FM radio station. USB DISK/ TF CARD should be format FAT32
